Fully Computerized Flexo Printer Slotter Machine Vacuum Transfer Automatic

Fully Computerized Vacuum Transfer Automatic Flexo Printer Slotter Die-Cutter Machine

※Main Technical Parameters

Lead-edge Feeding System

• Can measure the corrugated cardboard thickness, can adjustment feeding gap automatic
• 7.5KW high-pressure centrifugal fans, according to the cardboard
• warping degree of the frequency control pressure, to ensure warp
• cardboard or thin cardboard high-speed accurate transmission.
• Left and right side baffle position electrically adjustable,
• screw-driven. and can remember computer.
• The front baffle adjust the position of the upper and lower intervals

※Printer Unit

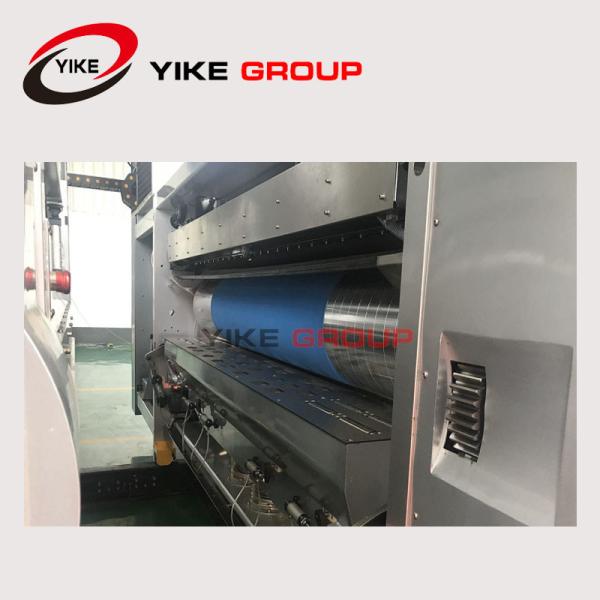

Printing Roller

• With printing plate
• High-quality steel production, surface ground, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
• Roller horizontal direction and circumferential direction with datum line, convenient for aligning the plate
• Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
• Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.
• Installed with a footswitch to control plate roller reversing, convenient change plate

※Slotting Unit

• Angle cutter made by ITALY model, cutting ring use Rubber materials
• Computer auto-control cardboard size by Linear guideway
• 6 shaft with rubber pre-creasing, creasing, slotter
• The first pressure line round, after preloading cardboard not easily crush
• The above press round Urethane appearance package, will not damage the cardboard
• The slotter knife stock use a traverse mechanism, screw with linear guide, to move more flexible and precise

※Die-cutting Unit

• Rubber roller mechanical spiral commutation 40mm move about the horizontal structure
• Die-cutter phase, computer, and electric digital control
• Horizontal phase, computer, and electric digital control, range ±5mm
• Rubber roller and die roller gap use a computer and electric digital control,

CHINA YIKE GROUP CO.,LTD

Web: www.yikegroup.net

Email: anna@yikegroup.net

WhatsApp: +86 13363699514

computerized flexo printer slotter machine

computerized slotter die cutter machine

vacuum transfer flexo printer slotter machine

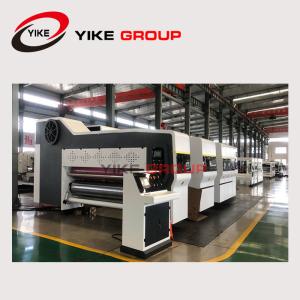

Fully Computerized Flexo Printer Slotter Machine Vacuum Transfer Automatic Images
